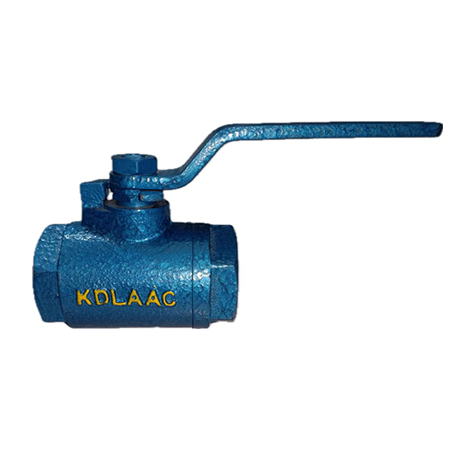

Cast Iron Screw End Ball Valve
Cast Iron Screw End Ball Valve
Heli Engineers manufactures high performance Heavy Duty Ball Valve, widely used in the Process Industries. These Valves are basically Soft Seated, gives 100 % Leak Proof tight shut off at Temperature ranging form – 20’c to 200’c.
The Valves are provided with Self Lubricated & Replaceable PTFE Moulded Seat & CNC Turning Mirror finished polished Stainless Steel Ball & Heavy Stem Reduces Friction which gives very smooth operation and maintenance free long life.
We offer Ball Valves as per International Standards as well as per Client’s Specifications and requirements. Theses Ball Valves are durable in nature because of its heavy duty C.I. Graded Casting done by Our Sistern Concern which is made from highly qualitative raw materials purchased from well-known suppliers in the market.
Special Features :
| Design: | Two Piece Design, Full Bore Stem Floating Ball, Locking Device |
| Size: | 15 MM to 150 MM ( ½” to 6”) |
| Port : | Full Port |
| MOC Body & Side Pc | Cast Iron Casting IS 210 Gr. FG–220 |
| Ball : | ASTM A 351 Gr. CF 8 / CF 8M (S.S. 304 / S.S. 316 ) ( Hollow / Solid) |
| Stem: | AISI Gr. S.S. 304 / S.S. 316 |
| Seat & Seal : | 100 % P.T.F.E. / C.F.T. / G.F.T. |
| Design & Manufacturing Standard : | BS 5351 / ASME B16.34 / As Per ISO 17292 |
| Testing & Inspection Standard : | API 598 / BS 6755 |
| Face to Face : | ASME B16.10 |
| End Connection : | Flange End ASME B16.5 |
| Working Pressure : | Hydro Body : 32 Kg/ Cm2 Hydro Seat : 22 Kg / Cm2 Air / Pneumatic : 7 Kg/ Cm2 |
