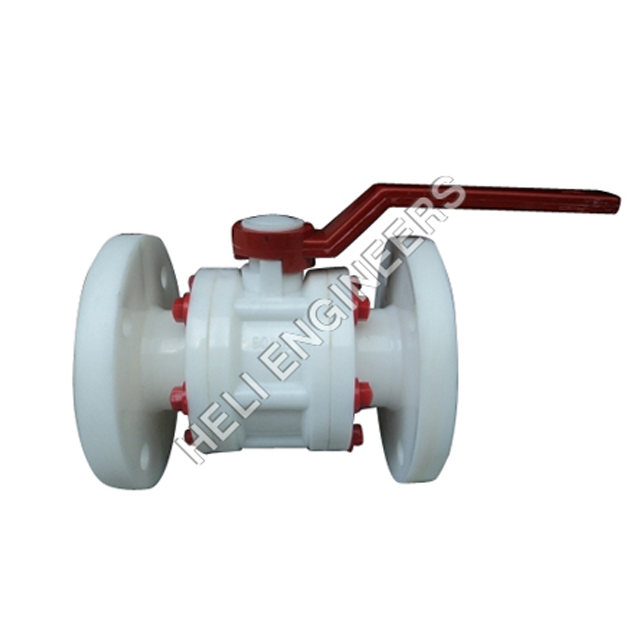

P.P. Ball Valve
Technical Data :
| Construction | 3 Piece Design, Single Piece Stem (spindle) Reinforced Ball, Teflon Seated,Full Bore |
| Design & Manufacturings STD | As per Manufacturer’s Standard |
| End Connections | Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD. |
Special Features :
- M.O.C. : PP (Polypropylene) HDPE (High Density Polythylene)
- Ball valves moulded on high pressure moulding machine.
- Complete contact parts from P.P.
- Straight flow without pressure drop.
- Resistand to almost every chemicals.
- With stand temperature upto 110,
- Hydraulically tested upto 200 PSIG.
Application :
- Chemicals
- Pharmaceuticals
- Petrochemicals
- Fertilizers
- Oil Refinaries
- Sugar Industries
- Paint & Warnish works
- Breweries & Distillaries
- Water Works
- Cement Industries ETC
MAX.
| Body | Seat | Temp. |
| 200 PSI | 150 PSI | 100 °C |

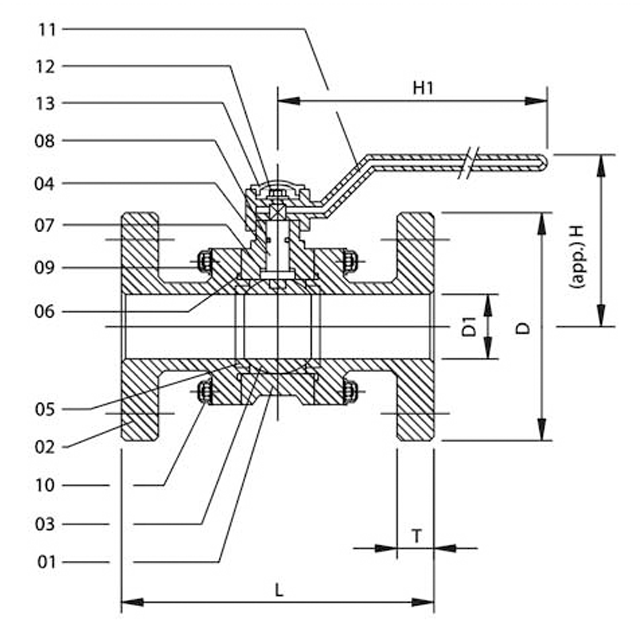

Material of Construction :
| PART NO | PART | MATERIAL |
|---|---|---|
| 1 | Body | PP / HDPE |
| 2 | Side Piece/ Connector | PP / HDPE |
| 3 | Ball | PP / HDPE |
| 4 | STEM / SPINDLE | M.S. / S.S.PP Coated |
| 5 | Seat Ring | 100 % P.T.F.E. |
| 6 | Connector Seal | 100 % P.T.F.E. / PVC / Viton Rubber |
| 7 | Stem Seal Ring | 100 % P.T.F.E. |
| 8 | Stem O-Ring | Neoprene |
| 9 | Stud.Nut & Washer | M.S.(EN8) / S.S. |
| 10 | Nut Cap | PP / HDPE |
| 11 | Handle | M.S. PP Coated |
| 12 | Handle Hex.Pin | M.S.(EN8) / S.S. |
| 13 | Handle Cap | PP / HDPE |
