Globe Valve
Globe Valves :
Heli Engineers Offer “KDLAAC” Cast Steel Globe Valves with 150, 300 class which are precisely made by using High Quality Raw-Materials.
These valves are OS and Y Type, Out side Screw and yoke, Rising Spindle and Hand Wheel Bolted Bonnet Designed Which ensure 100 % Smooth
Flow area and reduce pressure drop across the Valve.
Specially Designed Grafoil Rings in the Stuffing Box provides sure Tightness and Longer Packing life in Higher Temperature Applications also. Properly Machined and Lapped Back Sheet facilities are provided for Replacement of Gland Packing When Valve is on line & Under Pressure. Spiral Gaskets are also provided for zero leakage Applications.
Specially Designed Grafoil Rings in the Stuffing Box provides sure Tightness and Longer Packing life in Higher Temperature Applications also. Properly Machined and Lapped Back Sheet facilities are provided for Replacement of Gland Packing When Valve is on line & Under Pressure. Spiral Gaskets are also provided for zero leakage Applications.
Special Features :
| Sizes : | 25 MM to 300 MM ( 1” to 12”), Class 150, Class 300 |
| Manufacturing Std. | BS 1873 |
| Testing Standard: | API 598 |
| End Connection: | Flange End – As Per DIN 2533 / ASME B 16.5 RF Face to Face – As Per DIN ND 16 / ND 40 / ASME B 16.10, 150 Class |
Pressure Testing :
| CLASS | HYDRAULIC PRESSURE | PNEUMATIC | ||
|---|---|---|---|---|
| BODY | SEAT | BACK SEAT | SEAT | |
| 150 # | 32 Kg/Cm2 | 22 Kg/Cm2 | 22 Kg/Cm2 | 7 Kg/Cm2 |
| 300 # | 78 Kg/Cm2 | 56 Kg/Cm2 | 56 Kg/Cm2 | 7 Kg/Cm2 |

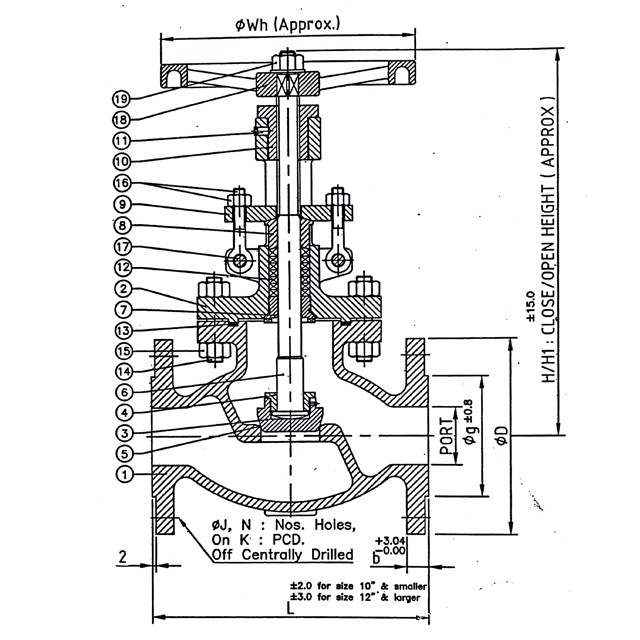

Material of Construction :
| PART NO | PART | MATERIAL |
|---|---|---|
| 1 | Body | MATERIAL ASTM A 216 Gr.WCB / ASTM A 351 Gr. CF 8 / CF 8M |
| 2 | Bonnet | ASTM A 216 Gr.WCB / ASTM A 351 Gr. CF 8 / CF 8M |
| 3 | Disc | AISI 410 13% Chrome Facing / Stellited Welded / S.S. 304 / S.S.316 |
| 4 | Disc Nut | AISI 410 / S.S. 304 / S.S.316 |
| 5 | Seat Ring | AISI 410 13% Chrome Facing / Stellted Welded / S.S. 304 / S.S. 316 |
| 6 | Stem | AISI 410 / S.S. 304 / S.S. 316 |
| 7 | Back Seat Bush | AISI 410 / S.S. 304 / S.S. 316 |
| 8 | Gland Bush | AISI 410 / S.S. 304 / S.S. 316 |
| 9 | Gland Flange | Carbon Steel / S.S. 304 / S.S. 316 |
| 10 | Yoke Bush | Carbon Steel / S.S. 304 / S.S. 316 |
| 11 | Grub Screw | Carbon Steel / S.S. 304 / S.S. 316 |
| 12 | Gland Sealing | Graphoil Rings |
| 13 | Bonnet Gasket | S.S. 304 + Graphite Spiral Wound Gasket |
| 14 | Studd | ASTM A 193 Gr. B7 / S.S. 304 |
| 15 | Nut | ASTM A 194 Gr. 2H / S.S. 304 |
| 16 | Eye Bolt | Carbon Steel / S.S. 304 |
| 17 | Lug Bolt & Nut | Carbon Steel / S.S. 304 |
| 18 | Hand Wheel | S.G.Iron |
| 19 | Hand Wheel Nut | Carbon Steel / S.S. 304 |
