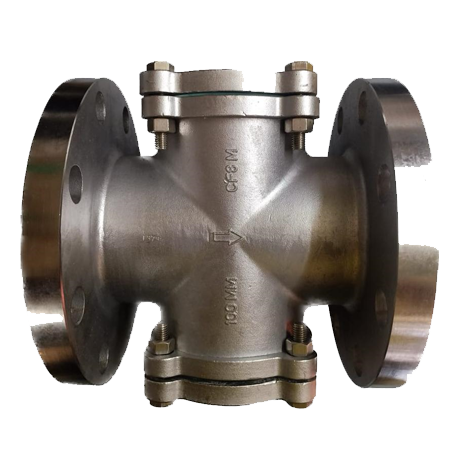

Double Window Sight Glass
Double Window Sight Glass :
Heli Engineers is manufacturing Double Window Type Sight Glass (Sight Flow Indicator) in Cast Construction & Fabricated Design to meet an Industrial Requirement of various Applications to inspect the Process Fluid. Double Window Sight Glass Contains Two Toughened Glasses Mounted opposite to Each Other.
Double Window Type Sight Glass available with various Thickness and Diameter of glass to suit various applications depends on Fluid Pressure and Temperature. In Double Window Sight Glass, It is very easy to replace Glass without dismantling the whole Sight Glass Assembly from Process Line.
Sailent Features :
- Easy Maintenance
- Available in all M.O.C. Like S.S. 304/ 316, WCB
- Manufactured to the Highest Standard
- Durable Construction
- Tempered Borosilicate Glass Standard
- Large View Area
- T.F.E. [Teflon] FEP / PFA Lined Sight Glass
- Fully Jacketed Double Window Type Sight Glass
- Special Face to Face Dimension as per requirements
- Sizes Range from 1/2” ( 15 MM ) To 8” ( 200MM )
- Pressure Rating PN 10
- Design & Testing As Per Mfg. Standard
- End Connections as per ANSI B 16.5/BS 10 Table/DIN/IS 6392 Std.
- Material Test Certificate & Pressure Test Certificates furnished on request.
- Tailor Made Sight Glass
Material Specifications :
| Availability [Size] : | 25 MM To 200 MM |
| Body & Cover: | WCB / CF8 ( SS 304 ) / CF8M |
| Gasket: | 100 % P.T.F.E. |
| Glass: | Tempered Borosilicate |
| Fasteners : | B7 / 2H / SS 304 / SS 316 |
| Pressure Rating : | 150# / PN6 / PN10/ PN16 |
| Design & Testing : | As Per Mfg. |
| Flange Drilling: | ANSI 16.5 / BS 10 Table/ DIN / IS |
| Face to Face : | ANSI B 16.10 |
