Stainless Steel Gear Pump – Series KDSS

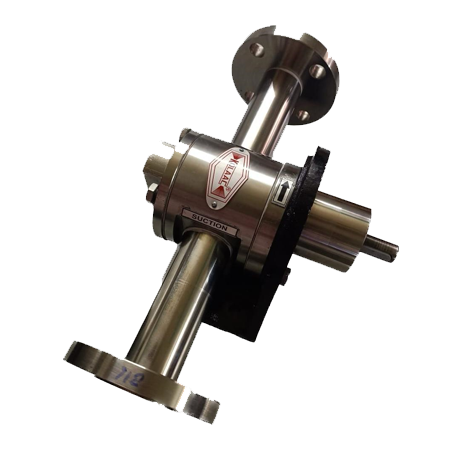

All Stainless Steel Rotary Gear Pump KDSS Series
“KDLAAC” Brand gear pump type KDSS is a self priming, bi-directional, positive displacement rotary pump in all stainless steel (SS – 304 & 316) construction with dry – PTFE coated DU bushes requiring no lubrication. These pumps are easily cleanable, easily maintainable in Three piece construction.
The back cover can simply be removed by 4 L.N Pin. The rectangle mounting brackets facilitates foot mounting of the pump on base Plate with appropriate electric Motors. Mechanical Seal is optional for Teflon GFO Gland Packings.
Special Features of the Products :
- Compact Design
- Efficient Performance
- Easy Maintainable
- Easy Cleanable
Uses:
This compact & efficient SS pumps find various application for handling viscous food product like Ghee, Butter, Fruit Pulp, Honey , Liquid Syrup, Vegetable Souse, Kanji etc.
They also are used in Pharmaceutical Industries for handling Sugar Solution, Glycerin, Glycol etc. In Chemical Industries corrosive Viscous Chemical can be handled most effectively with these Pumps.
Material of Constructions :
| Pump Body : | CF8M ( S.S. 316 ) |
| Front Cover: | CF8M ( S.S. 316 ) |
| Back Cover : | CF8M ( S.S. 316 ) |
| Seal Cover : | CF8M ( S.S. 316 ) |
| Gears & Shaft : | S.S. 316 |
| Bushes : | PTFE Coated ‘DU’ Bush |
| Sealing : | “Z” Pack Teflon |
| Packing : | Teflon Sheet |
| Mounting Bracket : | C.I. Graded IS 210 FG – 220 |
| L.N.Pin : | S.S. 316 |
| Key For Coupling : | S.S. 316 |
Available Model - Size - Capacity:
| PUMP MODEL KDSS | PORT SIZE NPT | CAPACITY AT 1440 RPM | WT. OF PUMP [in kgs.] | ||
|---|---|---|---|---|---|
| LPM | US GPM | M3/hr | |||
| 025 | 1/4″ X 1/4″ | 8.33 | 2.2 | 0.50 | 2.00 |
| 040 | 3/8″ X 3/8″ | 16.66 | 4.4 | 1.00 | 3.00 |
| 050 | 1/2″ X 1/2″ | 25.00 | 6.6 | 1.50 | 3.50 |
| 075 | 3/4″ X 3/4″ | 33.33 | 8.8 | 2.00 | 4.50 |
| 100 | 1″ X 1″ | 50.00 | 13.2 | 3.00 | 5.00 |
| 125 | 1.1/4″ X 1.1/4″ | 100.00 | 26.4 | 6.00 | 7.00 |
| 150 | 1.1/2″ X 1.1/2 | 125.00 | 33.0 | 7.50 | 10.50 |
| 200 200 | 2″ X 2″ | 150 200 | 39.6 52.8 | 9.00 12.00 | 20.50 24.00 |
| 250 250 | 2.1/2″ X 2.1/2″ | 250 300 | 65.0 80.0 | 15.00 18.00 | 35.00 40.00 |
| Maximum Pressure | Maximum Temperature | Maximum Viscosity |
|---|---|---|
| 7 Kg / Cm2 | 200o C | 1,00,000 CST |
Special Notes : The Pump can also be provided with Mechanical Seal as per the requirement of the job.
